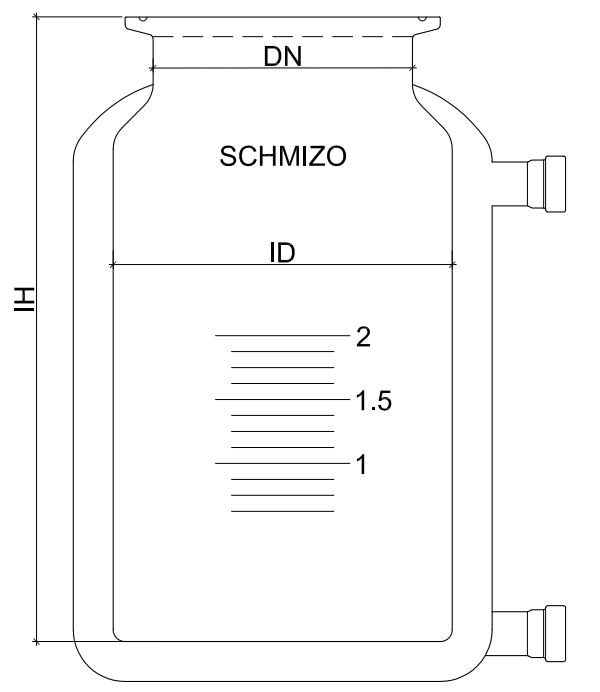

Reaction vessel, jacketed, flat flange SCHMIZO with a groove, flat bot-tom, inlet/outlet flat flange DN 15, serial numbered
SCHMIZO Flat Flange
DN = Diameter nominal
All reaction vessels are also available with „SCHOTT“ flange (DURAN laboratory flan-ge): Please add „S“ at the end of the article number. Size DN 200 is only available with SCHOTT-flange.
inlet/outlet
flat flange DN 15
On request also available with spherical joints, GL- or SVL-threads
| SKU | Volume ml | DN | IH mm | ID mm | Valve Bore | Add to Cart |
|---|---|---|---|---|---|---|
| 17.200.55 | 100 | 60 | 85 | 65 | NA | |
| 17.220.98 | 20000 | 120 | 500 | 280 | NA | |
| 17.200.65 | 250 | 60 | 145 | 65 | NA | |
| 17.230.88 | 2500 | 150 | 200 | 160 | NA | |
| 17.200.70 | 350 | 60 | 185 | 65 | NA | |
| 17.230.89 | 3000 | 150 | 230 | 160 | NA | |
| 17.200.73 | 500 | 60 | 240 | 65 | NA | |
| 17.230.92 | 4000 | 150 | 290 | 160 | NA | |
| 17.200.74 | 500 | 60 | 185 | 85 | NA | |
| 17.230.94 | 5000 | 150 | 290 | 180 | NA | |
| 17.200.79 | 750 | 60 | 165 | 105 | NA | |
| 17.230.95 | 6000 | 150 | 335 | 200 | NA | |
| 17.200.81 | 1000 | 60 | 190 | 105 | NA | |
| 17.230.96 | 10000 | 150 | 380 | 220 | NA | |
| 17.210.73 | 500 | 100 | 125 | 105 | NA | |
| 17.230.97 | 15000 | 150 | 410 | 260 | NA | |
| 17.210.79 | 750 | 100 | 165 | 105 | NA | |
| 17.230.98 | 20000 | 150 | 500 | 280 | NA | |
| 17.210.81 | 1000 | 100 | 200 | 105 | NA | |
| 17.231.94S | 5000 | 200 | 260 | 180 | NA | |
| 17.210.85 | 1500 | 100 | 230 | 120 | NA | |
| 17.231.95S | 6000 | 200 | 335 | 200 | NA | |
| 17.210.87 | 2000 | 100 | 175 | 160 | NA | |
| 17.231.96S | 10000 | 200 | 450 | 200 | NA | |
| 17.210.88 | 2500 | 100 | 205 | 160 | NA | |
| 17.232.96S | 10000 | 200 | 380 | 240 | NA | |
| 17.210.89 | 3000 | 100 | 230 | 160 | NA | |
| 17.232.97S | 15000 | 200 | 410 | 260 | NA | |
| 17.210.92 | 4000 | 100 | 290 | 160 | NA | |
| 17.232.98S | 20000 | 200 | 500 | 280 | NA | |
| 17.210.94 | 5000 | 100 | 285 | 180 | NA | |
| 17.210.95 | 6000 | 100 | 335 | 200 | NA | |
| 17.210.96 | 10000 | 100 | 380 | 220 | NA | |
| 17.210.97 | 15000 | 100 | 410 | 260 | NA | |
| 17.210.98 | 20000 | 100 | 500 | 280 | NA | |
| 17.220.81 | 1000 | 120 | 170 | 120 | NA | |
| 17.220.85 | 1500 | 120 | 220 | 120 | NA | |
| 17.220.87 | 2000 | 120 | 275 | 120 | NA | |
| 17.220.88 | 2500 | 120 | 205 | 160 | NA | |
| 17.220.89 | 3000 | 120 | 230 | 160 | NA | |
| 17.220.92 | 4000 | 120 | 290 | 160 | NA | |
| 17.220.94 | 5000 | 120 | 285 | 180 | NA | |
| 17.220.95 | 6000 | 120 | 335 | 200 | NA | |
| 17.220.96 | 10000 | 120 | 380 | 220 | NA | |
| 17.220.97 | 15000 | 120 | 410 | 260 | NA |
