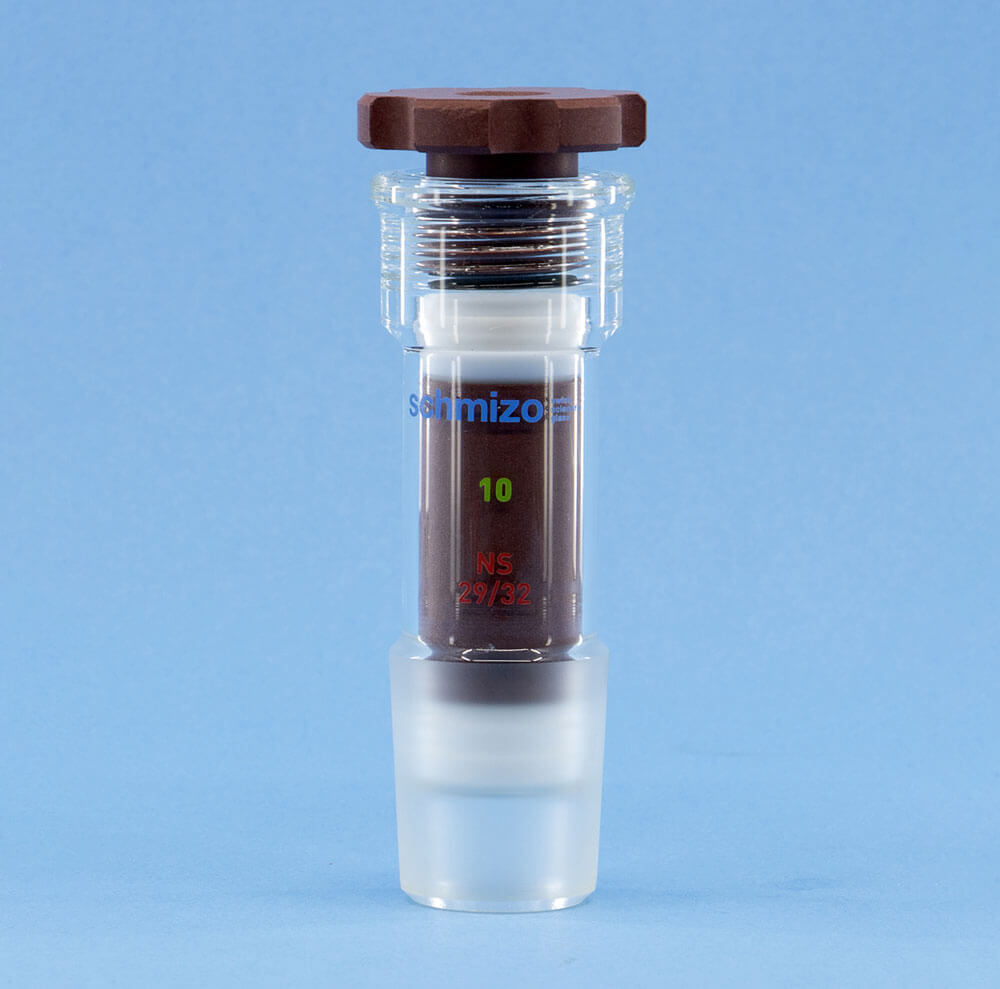

Stirrer Bearing DURA

Stirrer Bearing for demanding stirring tasks, also under moderate pressure and vacuum

By using 2 seperated PTFE sealing elements the guidance is extended and therefore an impact-free running of the shaft can be ensured for a longer lifetime.

Vakuum leaking rate at 400 rpm: 1.2 x 10-3 mbar/s (with new seal kits)

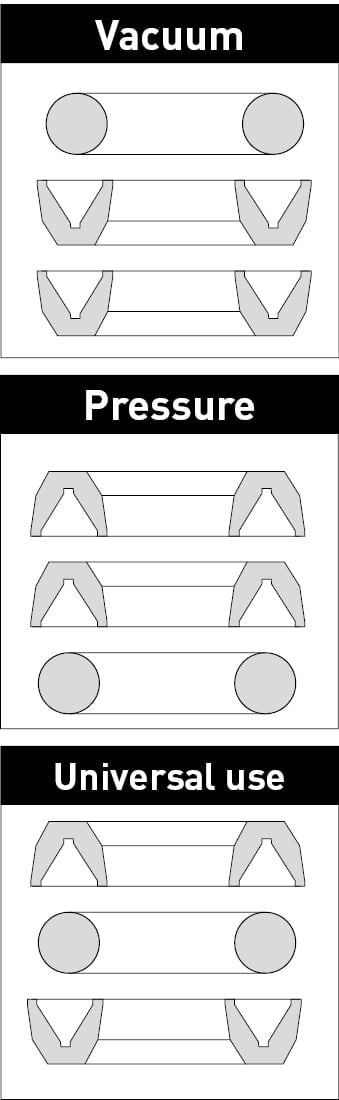

including upper and lower seal kit with double seal made of PTFE (seal kits are interchangeable)
Pressure screw and guide sleeve are made of fibre reinforced PTFE

NS Joint Cone

Clear

Artikelnummer 23.622.08 Kategorien Reactor accessories, Stirrer Bearing DURA, Stirrer Bearing with PTFE-Shaft, Stirrer Bearings

All Variants

SKU	D mm	NS Joint Cone
23.622.04	10	45
23.622.07	16	29
23.622.08	16	45
23.622.03	10	29

Customization

We would be happy to discuss with you the development of customer-specific functions for the product “Stirrer Bearing DURA”, to meet your specific process requirements. Thanks to our technical knowledge and skills in manufacturing scientific glass devices, we can implement almost any requirement and ensure that the customized reactor features are both reliable and user-friendly.
