Cyclone magnetic stirrer drive

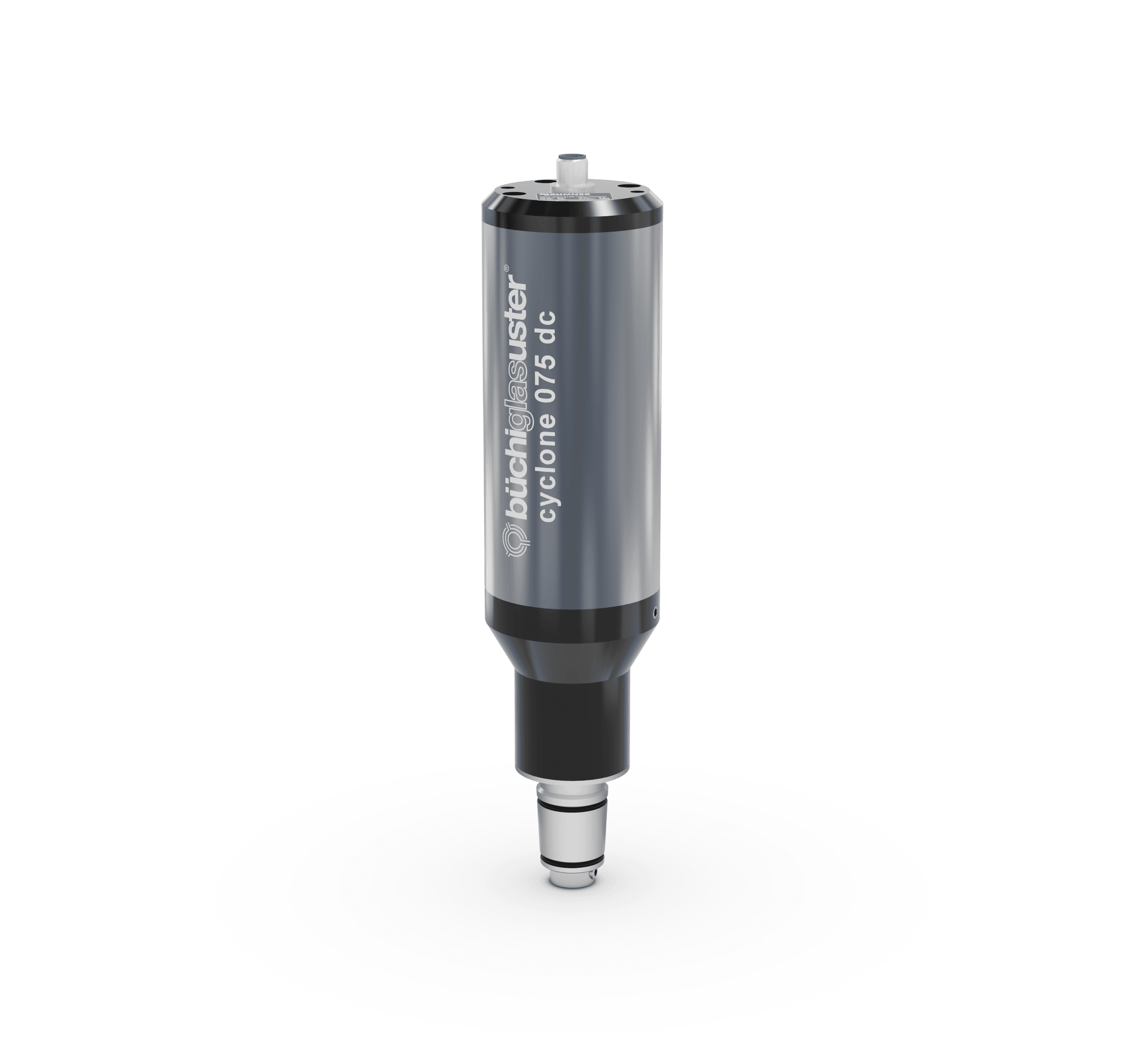

Buchi ‘cyclone 075’ is a complete stirrer drive, that incorporates a magnetic coupling and a built-in motor. The compact drive unit is fixed onto the cover plate of the reactor with an NS29/32 ground joint.

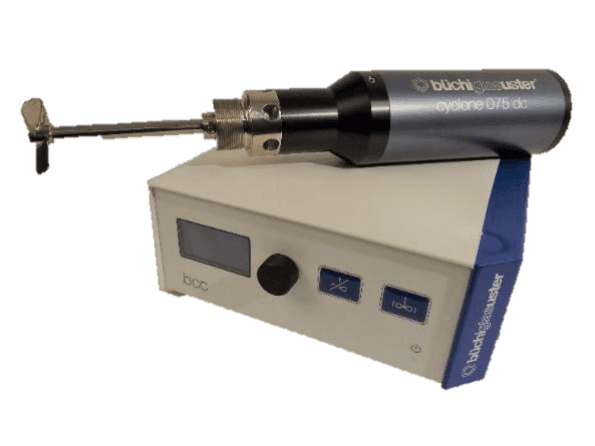

The cyclone controller enables stepless stirrer speed adjustment of the motor. Stirrer speed and torque can be transferred via a RS 232 interface.

Technical data integrated motor:

• Direct current drive: 100W
• Max. Continuous torque: 30 Ncm
• Speed controller ‘bcc’: 0 – 3000 rpm
• Display: Speed and torque
• Electrical requirements: 110/230VAC, 50/60Hz

Technical Data Magnetic Coupling “bmd 075”

• Max. torque: 75 Ncm
• Max. pressure: -1/+0 bar (ambient pressure)
• Max. temperature at inner magnet: 200°C
• Max. speed: 3000 rpm
• Connection: NS29/32
• Seal type: O-ring
• Bearing: plain bearing PTFE / graphite
